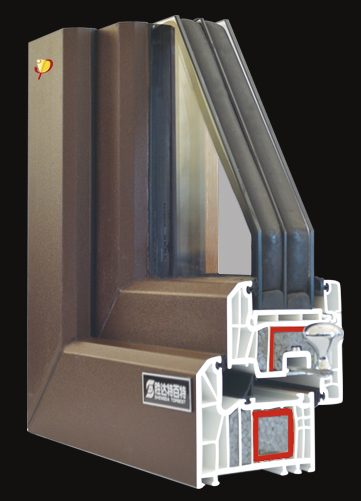

金彩系列TBT-88MD平开超低能耗窗

Gold color seriesTBT-88MD Low energy consumption of a windows

产品特点:

◆七腔结构、保温三密封/四密封设计,提供无以伦比的保温效果。

◆创新的多腔结构满足Uf值0.98w/㎡·k,整窗为1.0以下;Uf值0.76w/㎡·k,整窗Uw≤0.8w/㎡·k。

◆玻璃厚度最大可实现50mm,可实现更好的保温隔声。

◆壁厚为3.0mm,超越国标A类要求。

The seven cavity structure,heat insulation three seal/four seal design,provide unmatched insulation effect.

◆The multi-cavity structure of innovatuon satisfies the uf value of 0.98 w/㎡·k and the entire window is below 1.0 uf is 0.76w/㎡·k ,and the whole window is less than or equal to 0.8w/㎡·k.

◆Glass thickness is maximum, can realize 50mm, can realize better heat preservation and sound insulation.

◆The wall thickness is 3.0mm, exceed GB class a requirement.

整窗性能

Full window performance

Uw=0.79w/㎡.k

保温性能Insulation performance(W/(㎡·k)):0.79      10级

气密性Air tightness(q1 m³(m·h)):0.1                           8级

水密性Watertightness(pa):600                                    5级

抗风压性能Wind pressure resistance(Kpa):6.5           9级
